INSTALLATION INSTRUCTIONS

Model: WKDPL32DCCDD-EE
Warranty: 1 Year
Tapware Type: Water Efficient Tapware (Nominal Flow Rate = 7.5 L/min)

Important Notice of Routine Maintenance and Care

• Occasional cleaning of aerator is recommended.
• Use soapy water and a soft sponge or cloth only.
• Avoid cleaning with chemicals, solvents, or harsh detergents
  (this may seriously harm the surface area).
• If used with hard water or water with high mineral content, clean and dry the tapware immediately after every use.
  (Calcium and other minerals could seriously damage the surface area.)
• Wipe the canopy and keep hands dry before installing or replacing the LED battery to prevent circuit board damage.
• When installing with a filtration system or changing carbon filters, flush the filtered tubes before connecting with the tapware.
  (Prevents possible carbon dust contamination that may cause leaking.)

Battery Installation

1. Install the battery (CR2032) into the tapware canopy.
   • The slotted end must be oriented toward the tapware.
2. Reset: After installing or replacing the battery, the LED will flash yellow light 3 times.
3. Open filtered water with the blue signal 5 times only.

LED Indicator

1. Blue light flashes during operation after battery installation.
2. Red light flashes when the tapware has been activated for over 1 year.
   • At this point, replace the filter and battery together.
3. Program cycle:
   • Start: Flashing BLUE
   • At 355 days: Flashing YELLOW
   • At 365 days: Flashing RED
4. Days are accumulated once per hour.
5. PCB Reset: Press for 5 seconds until flashing Red → Blue → Red.

Pressure & Temperature Requirements

• Hot and cold water inlet pressures must be equal.
• Inlet pressure range: 150 – 1000 kPa
• Maximum hot water temperature: 70 °C

Installation Components

• Tapware
• Display
• Battery (CR2032)
• Battery Seat
• Escutcheon
• Rubber Washer
• Cold / Hot Tubes
• Countertop Mounting Parts

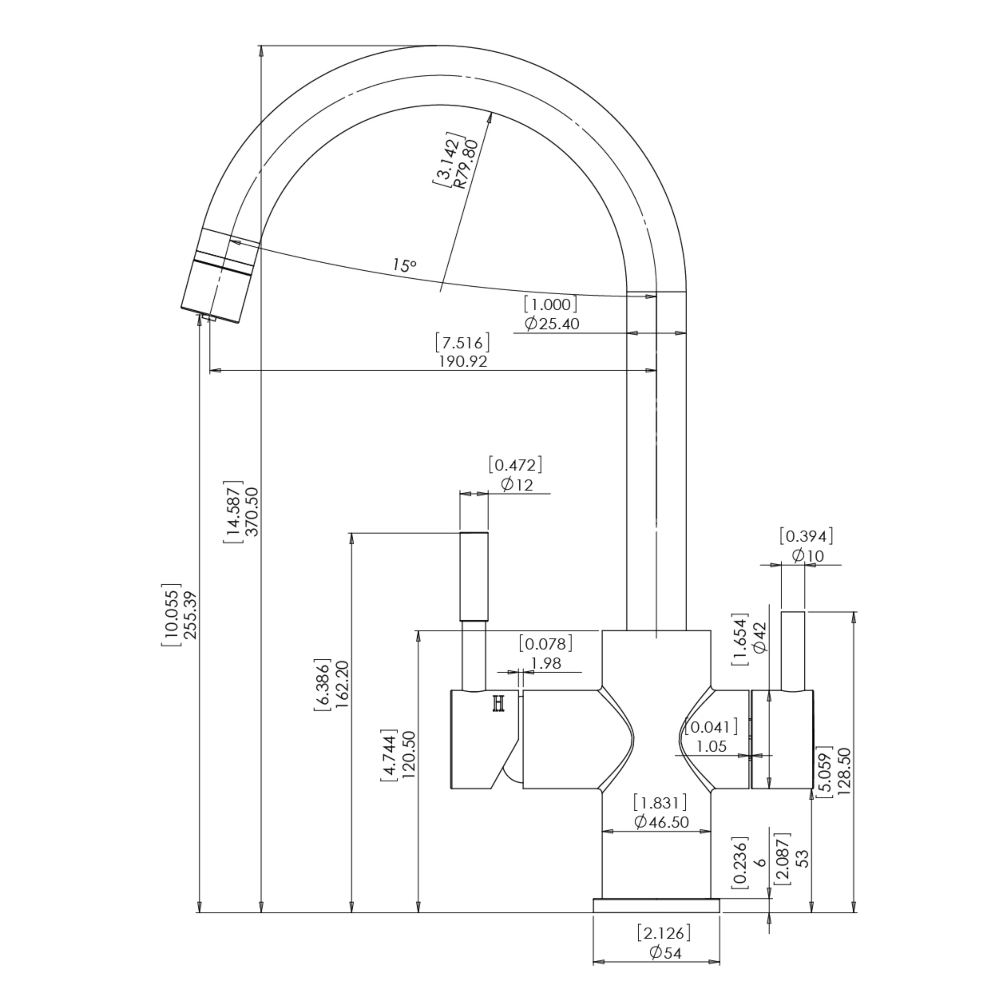

Mounting Instructions

• Hole Size: 35 mm
• Use Rubber Washer, Metal Washer, and Mounting Nut to secure.
• Connect filtered water using gasket + cone washer.
• Hot (Red) → 1/4″ compression nut
• Cold (Blue) → 1/4″ compression nut

⚠️ CAUTION

• DO NOT use tools when screwing flexible hoses into the tapware.
• Tighten by hand only — do not overtighten.
• Avoid sharp edges when installing the 1/4″ tube.
• Minimum clearance required: 15 mm

Bottom View (Reference)

• Screw Cold (Blue) → R24 mm
• Screw Hot (Red)
• Filtered Water Connection

Code: LAB-0458
